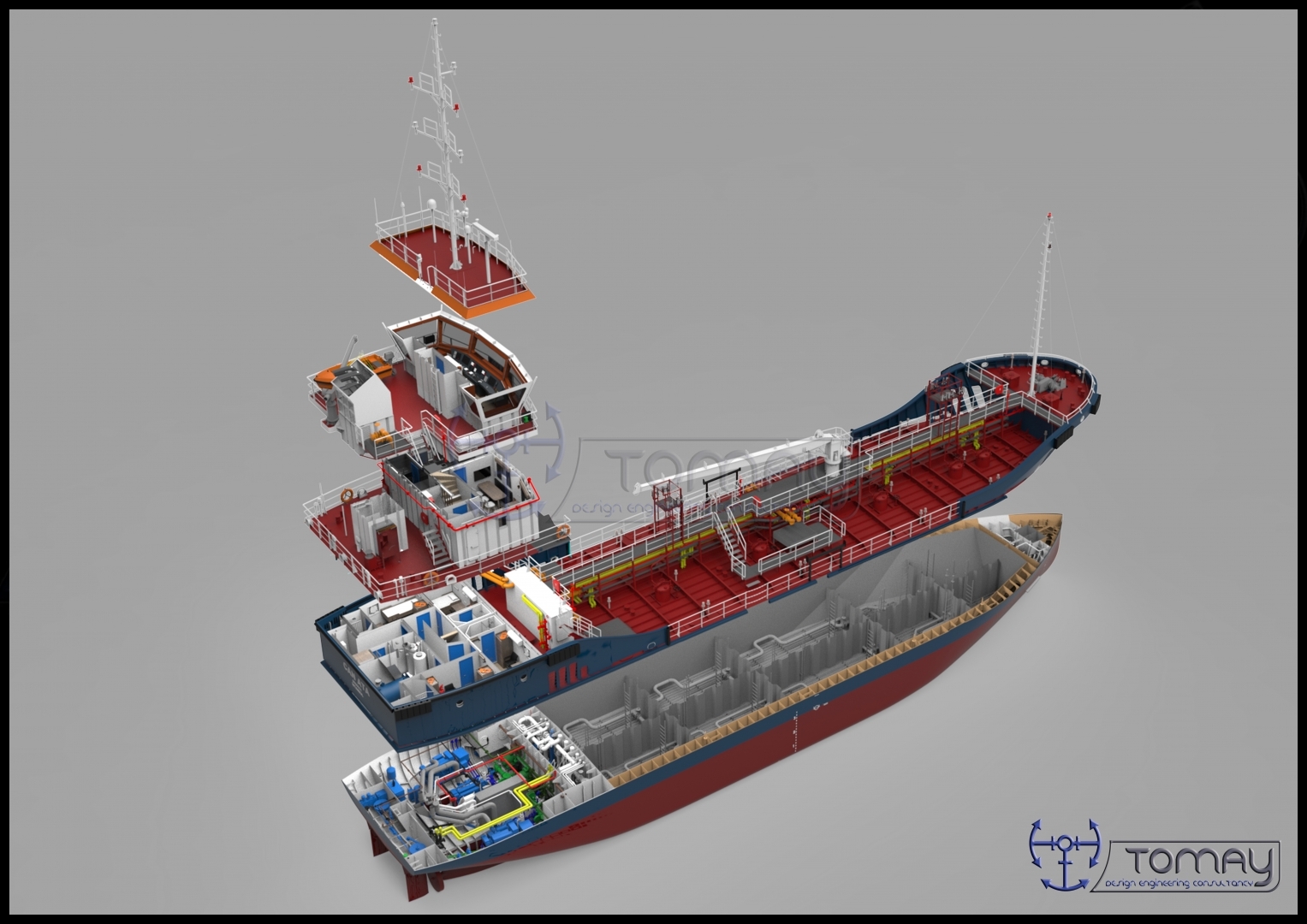

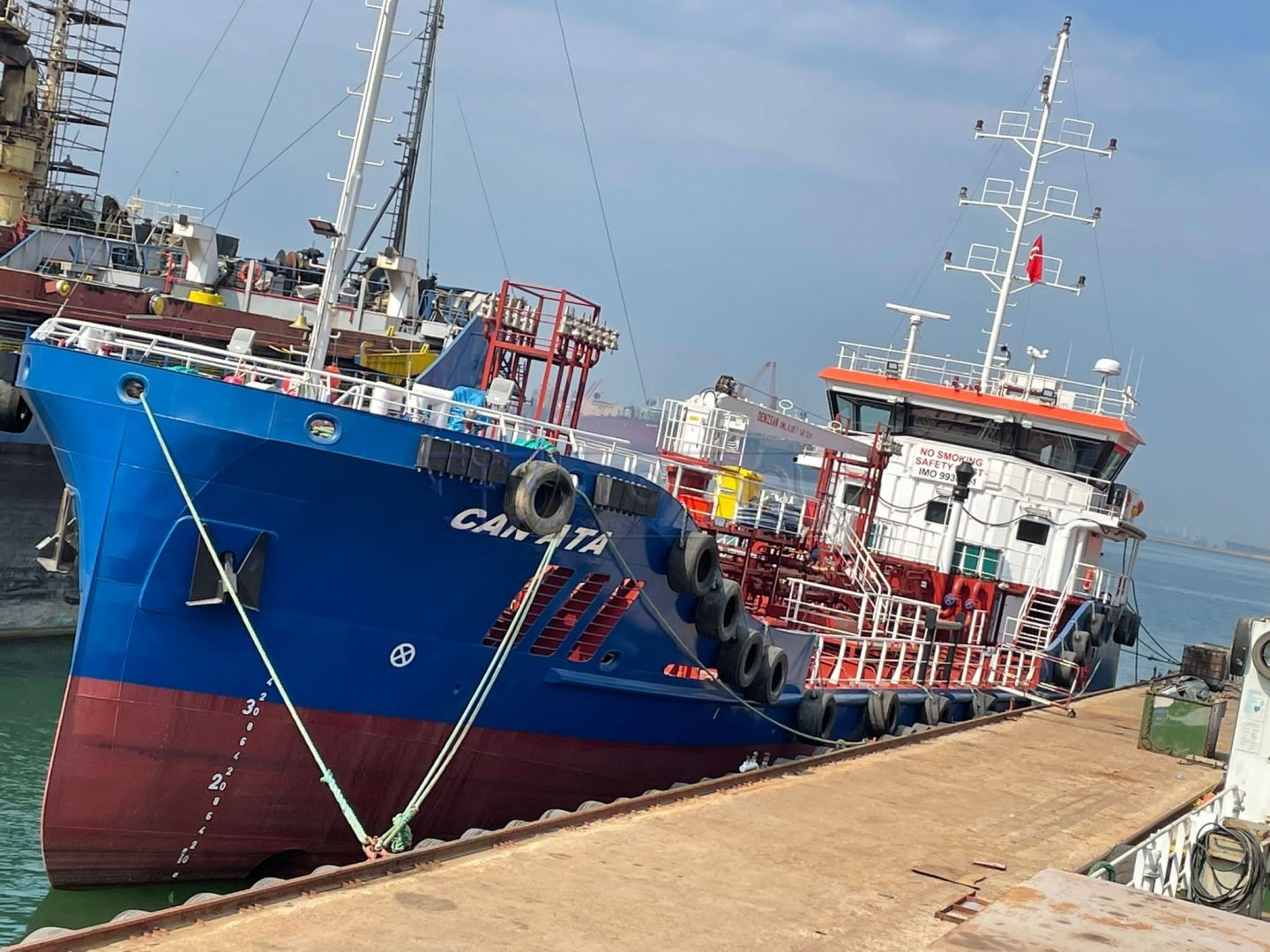

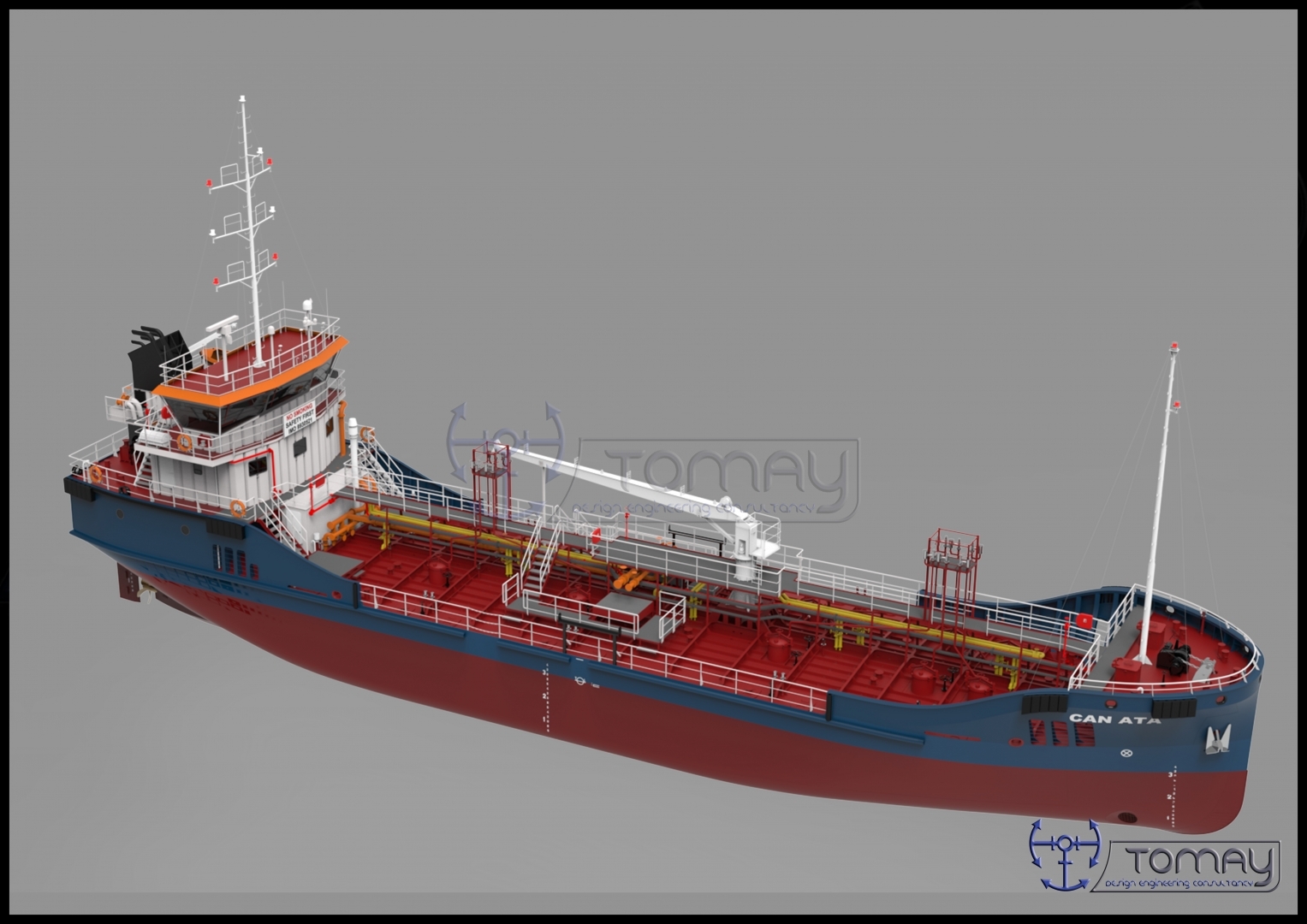

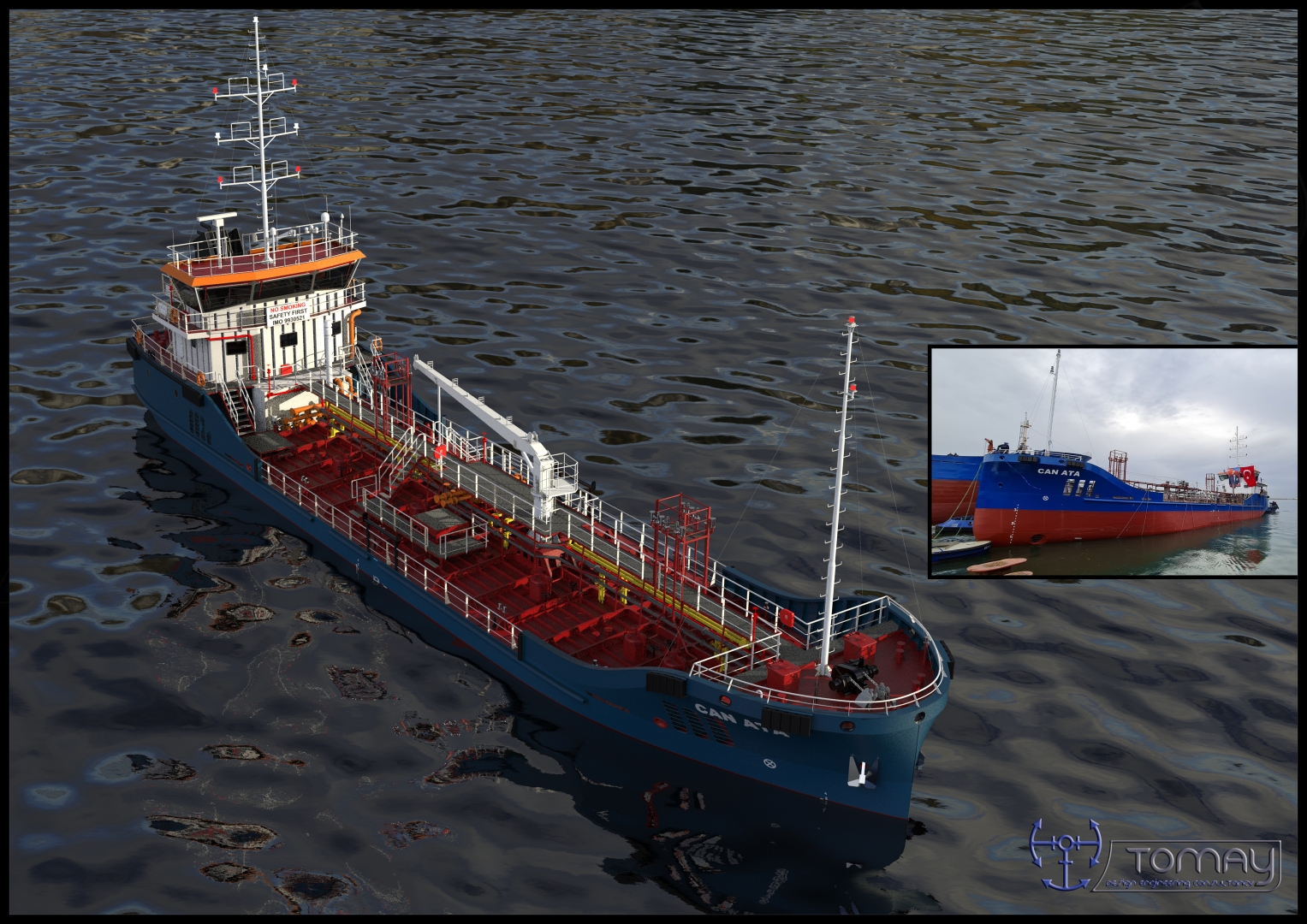

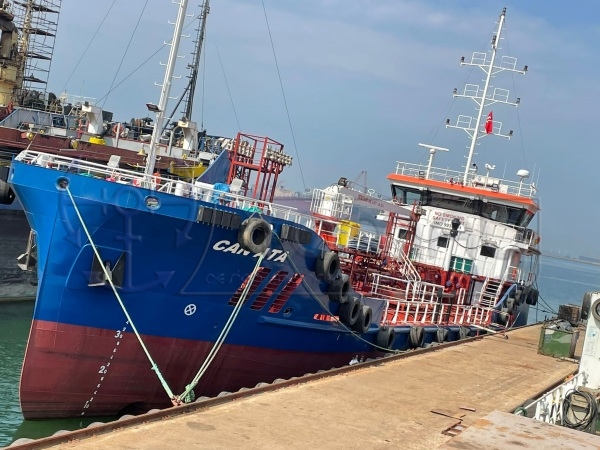

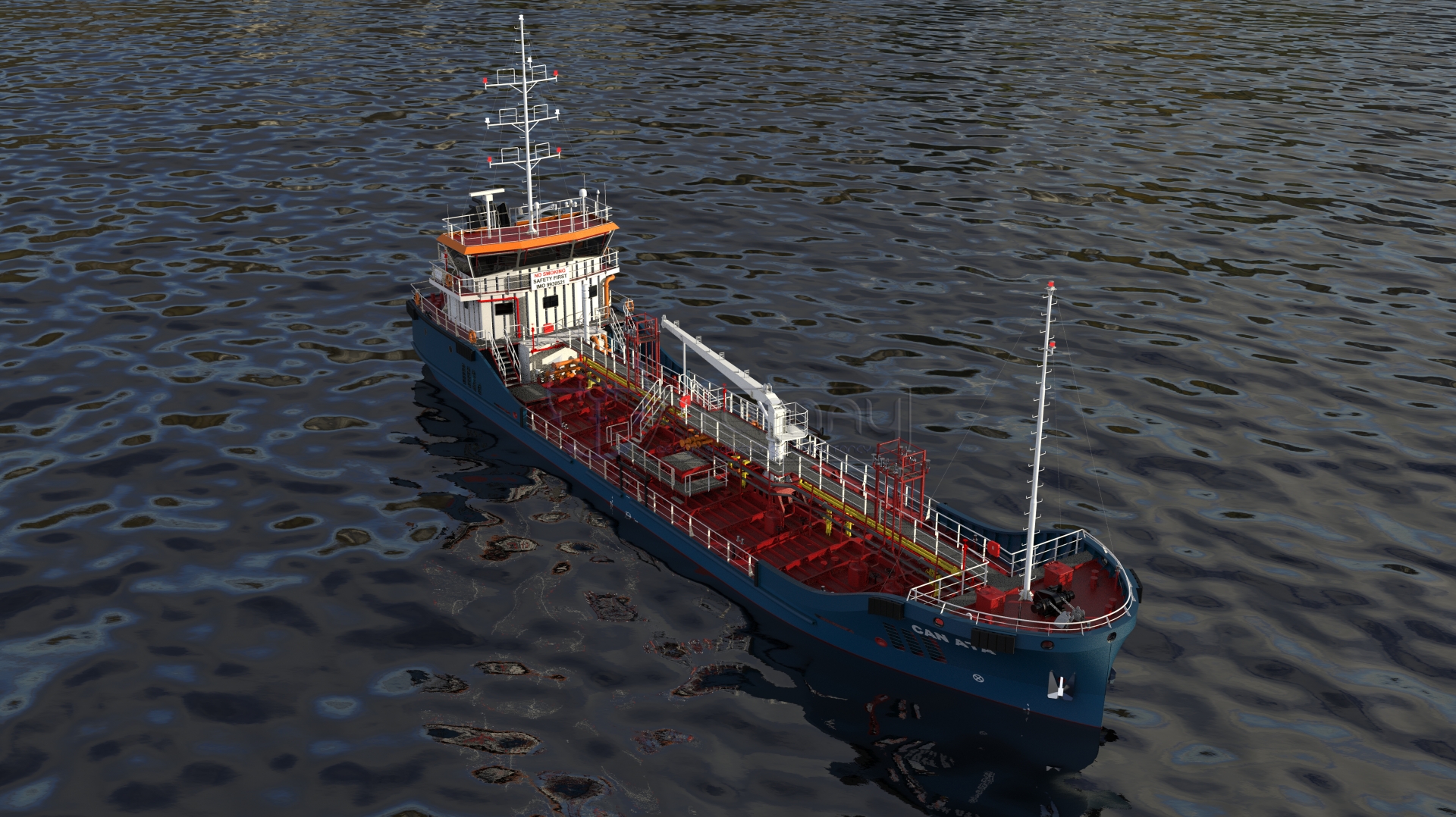

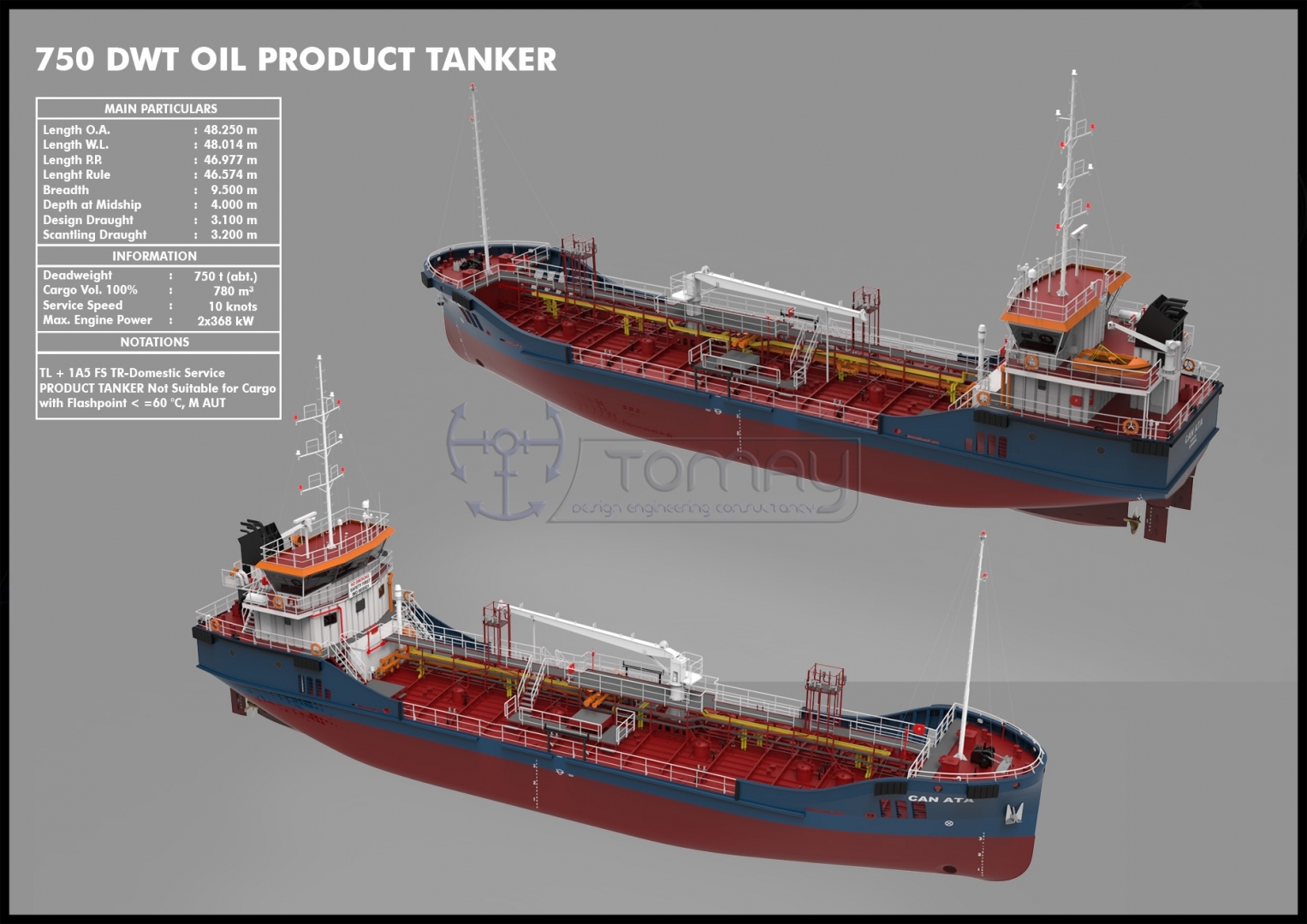

750 DWT OIL PRODUCT TANKER

GENERAL INFORMATION

Basic Functions

Transportation of Oil/Refined Products

Class Notations

I + HULL ● MACH Oil Tanker – FP>60°C

ESP - UNRESTRICTED NAVIGATION

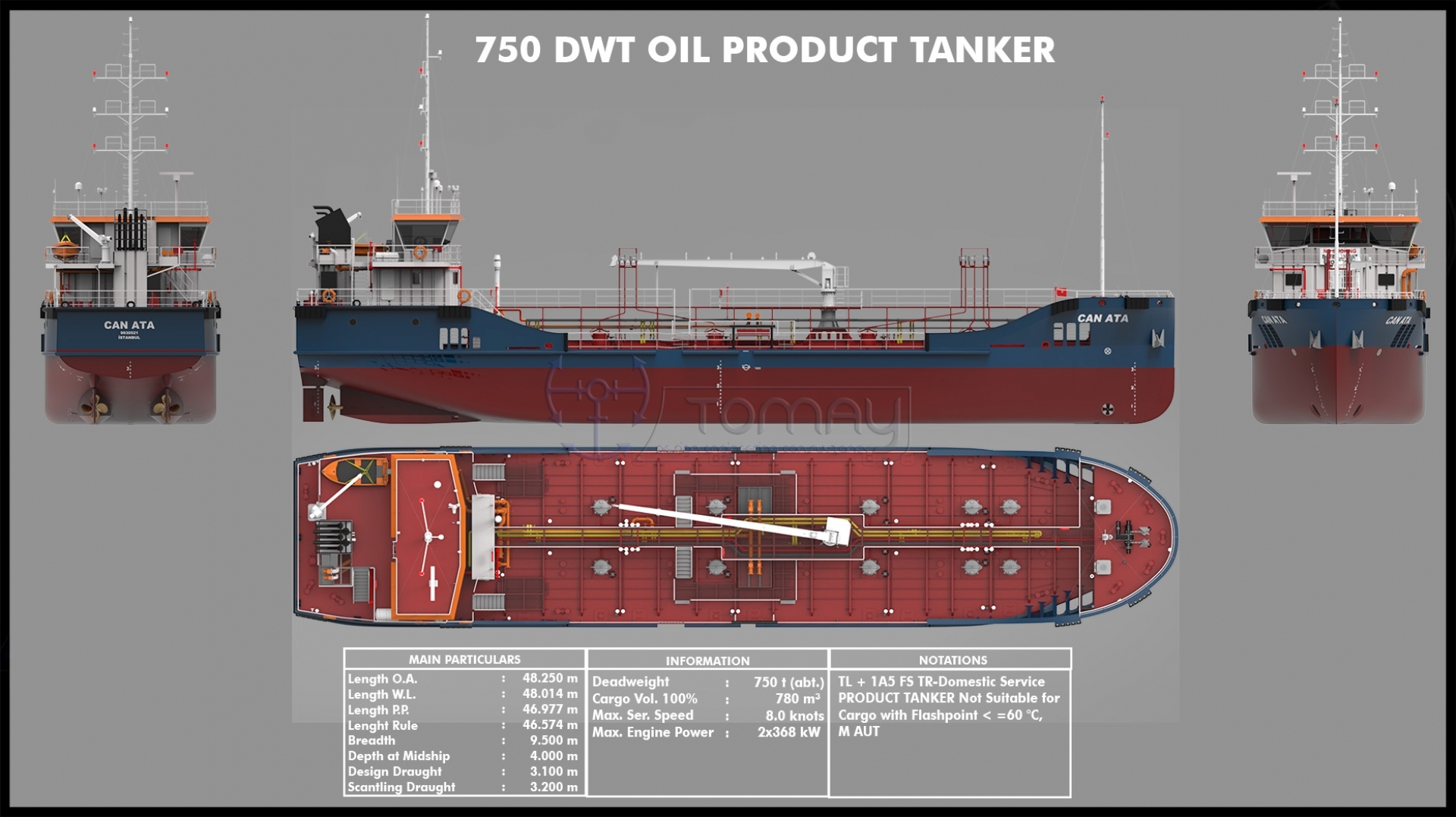

MAIN PARTICULARS

Length Overall

48.25 m

Length P.P.

46.95 m

Breadth Moulded

9.50 m

Depth

4.00 m

Draught

3.20 m

Deadweight (Approx.)

750 t

Gross Ton

<500

Speed

8 kts

Cargo Volume 100%

780.72 m3

TANK CAPACITIES

Cargo

780.72 m3

Ballast

398.52 m3

Diesel Oil

26.42 m3

Fresh Water

8.34 m3

Sewage

4.22 m3

Overflow

1.38 m3

Bilge

4.65 m3

Sludge

4.65 m3

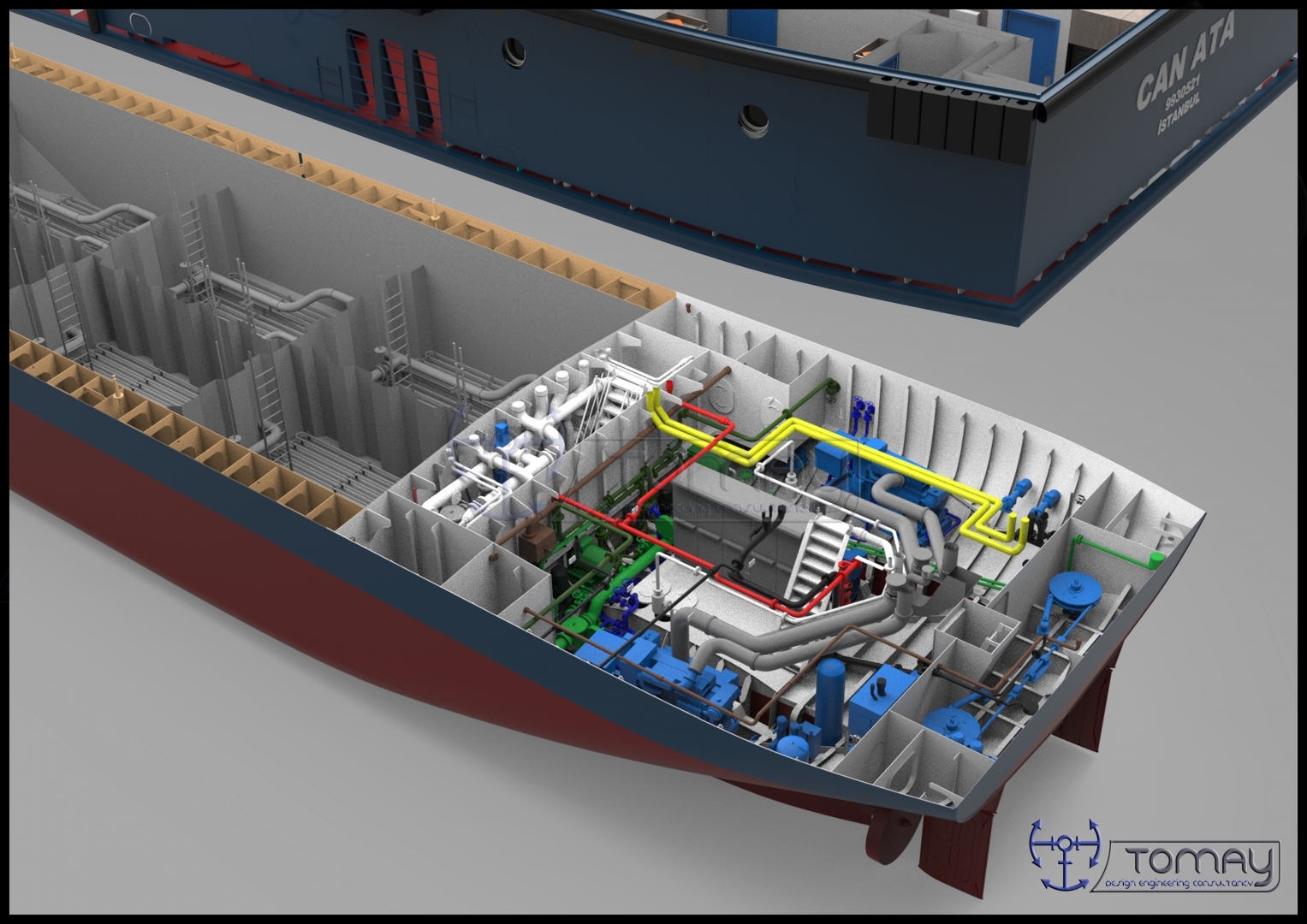

PROPULSION SYSTEM

Main Engines

2 x Baudouin-6 M26.2

Total Power

2x 368 kW

Propeller

2 x FPP - Four Blade

AUXILIARY ENGINES

Generator (Main)

 2 x Baudouin - GEB 6W126- 264 kWe

DECK EQUIPMENT

Hose Crane

1 x DENİZSAN – DSHHC9__Hose Handling Crane SWL 9kN 1.8/12m

Provision Crane

 1 x DENİZSAN – SWL 950 KG

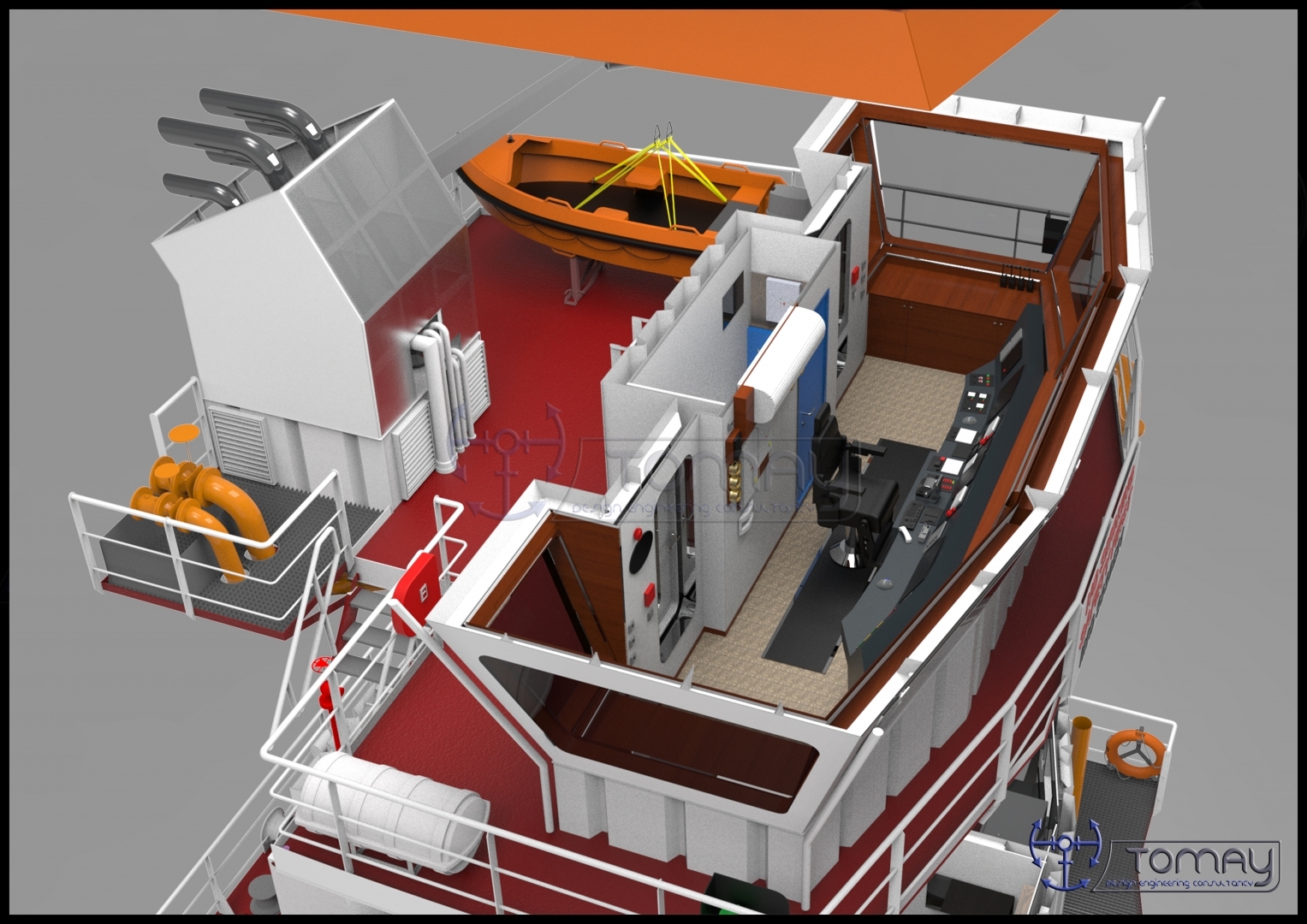

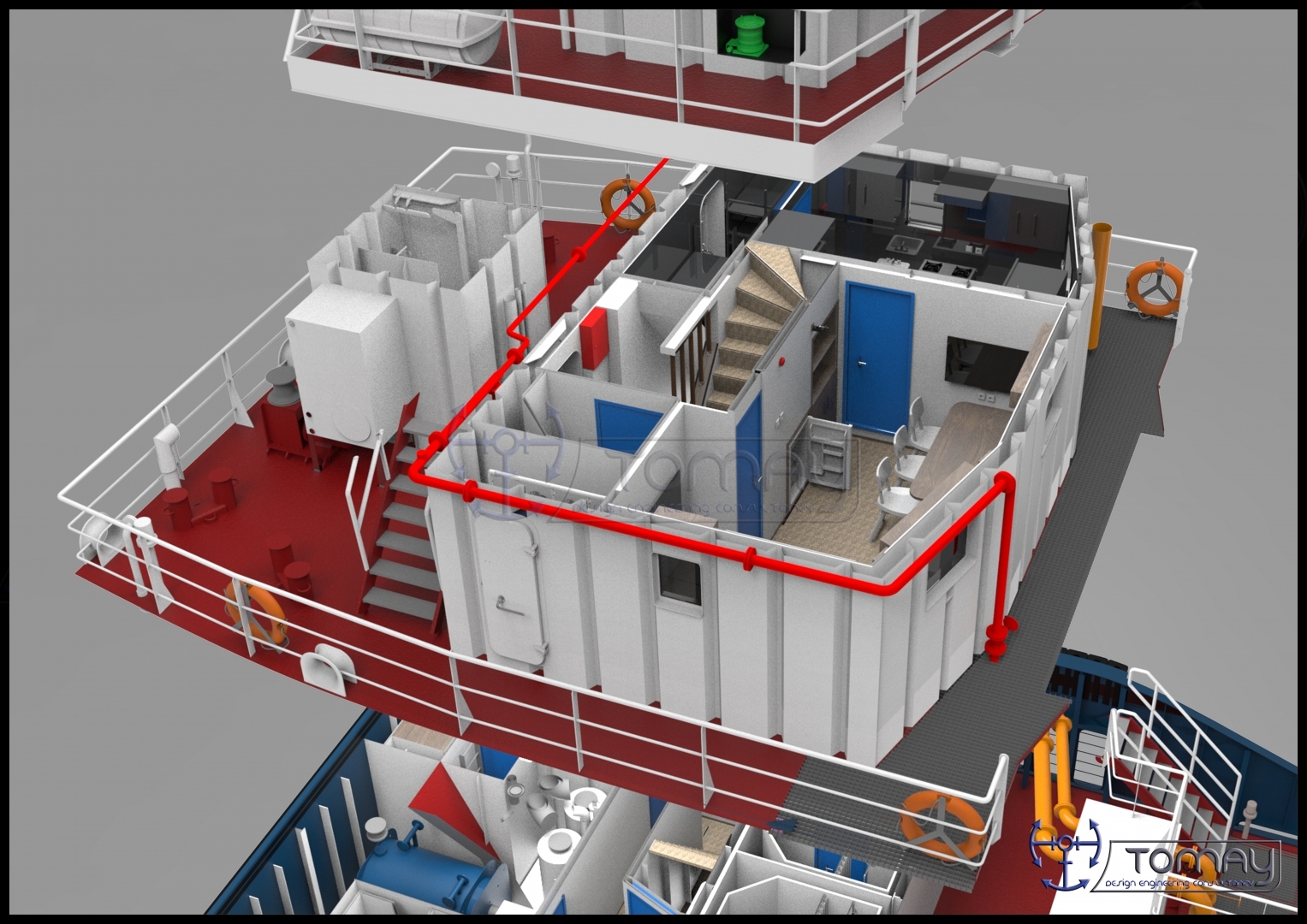

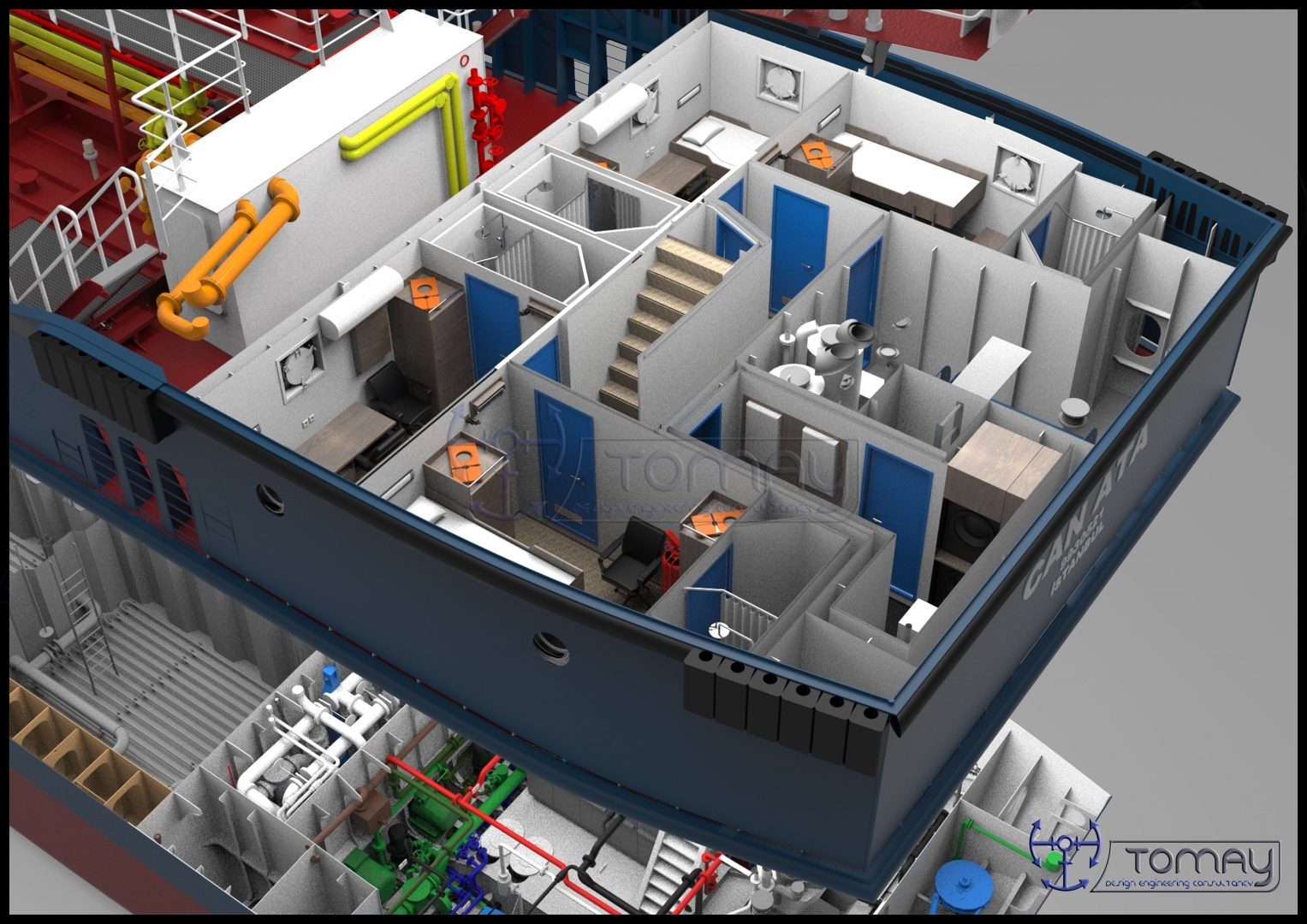

ACCOMMODATION

For 6 persons, cabins are insulated and finished with durable linings, isolated wheelhouse, floating floors and air-conditioned rooms. The Captain’s cabin, Chief Engineer’s cabin, 2 double crew cabins, galley, mess room and sanitary facilities.

REFERENCES

Owner

ÇELİKTRANS DENİZ INŞAAT

Shipyard

ÇELİKTRANS DENİZ INŞAAT

Hull Number

CS-57
